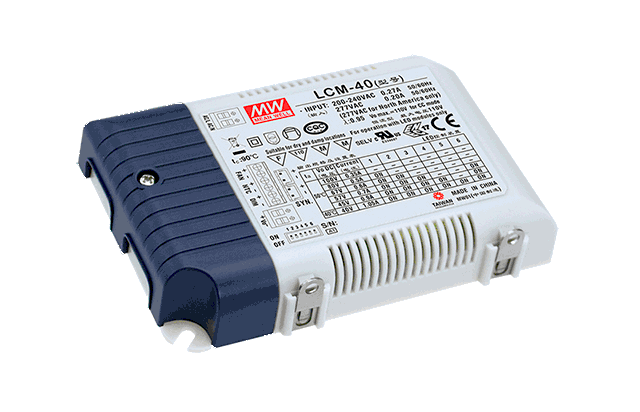

​QUICK OVERVIEW

Built-in 0~10Vdc or PWM signal dimming function

Output current level selectable by DIP S.W.

Built-in active PFC function

Protections: Short circuit / Over voltage / Over temperature


Other features:

• 180~295VAC input only

• Cooling by free air convection

• Temperature compensation function by external NTC

• No load power consumption <1.2W@AC always on

• Fully isolated plastic case

• Class power unit, no FG

• Built-in 12V/50mA auxiliary output

• Suitable for LED lighting applications

• Power supplies synchronization function up to 10 units

• 3 years warranty



Input Voltage: 180 → 295 V ac, 254 → 417 V dc

Output Voltage: 2 → 100V

Operation: Constant Current

Output Current: 1.05 A, 350 mA, 500 mA, 600 mA, 700 mA, 900 mA

Maximum Output Power: 42W

Dimming Operation: PWM, 1-10 V

AC or DC Input Voltage: Ac, Dc

IP Rating: IP20

Voltage Rating: 180 → 295 V ac, 254 → 417 V dc
